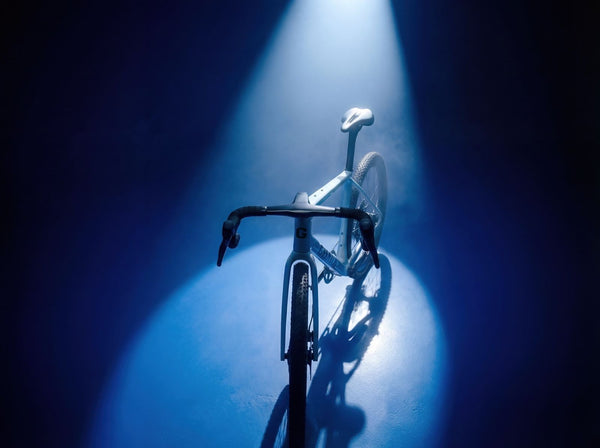

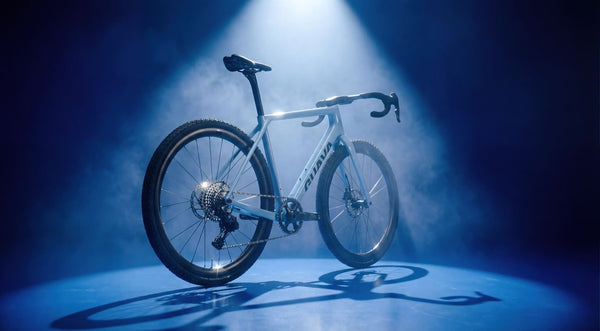

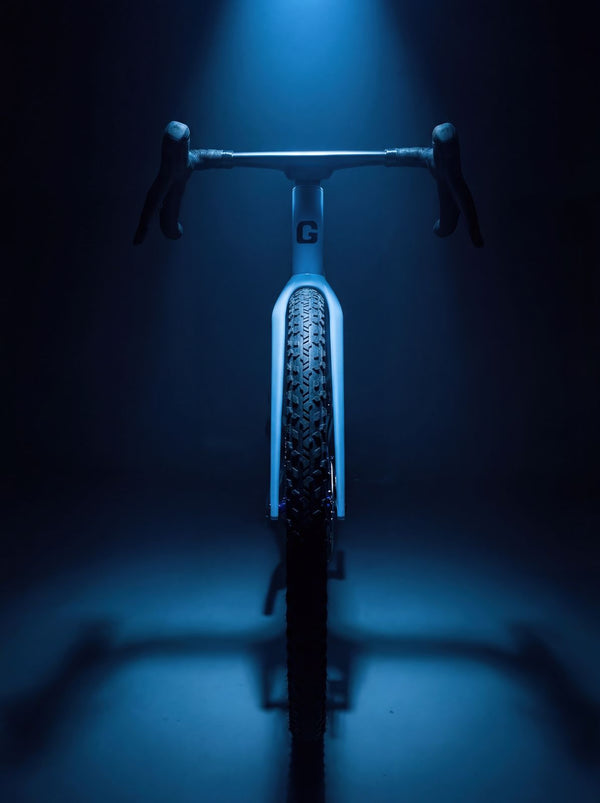

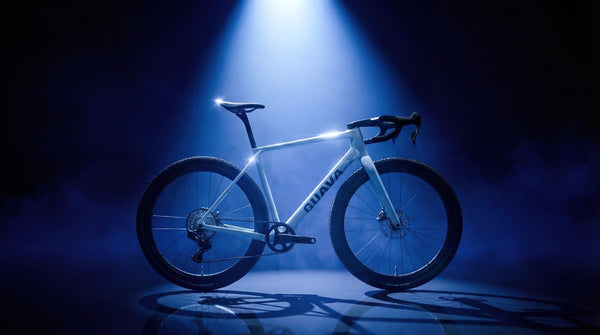

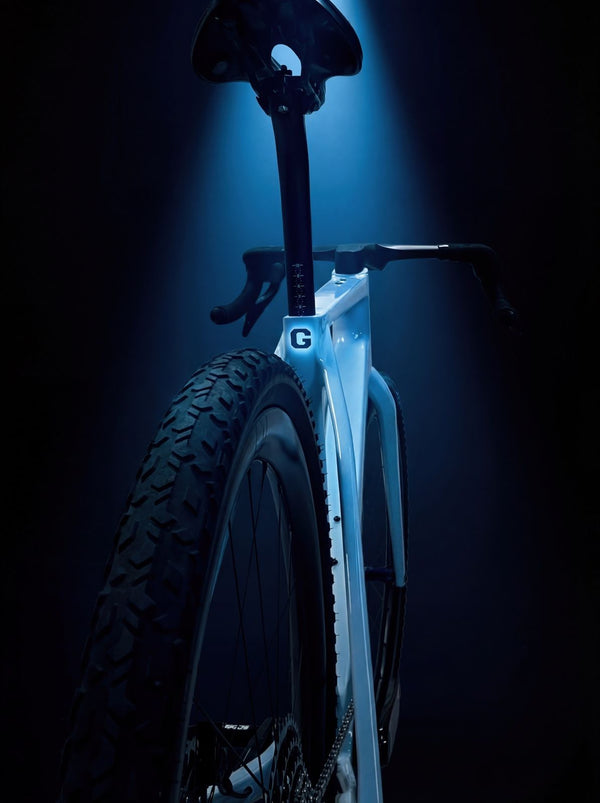

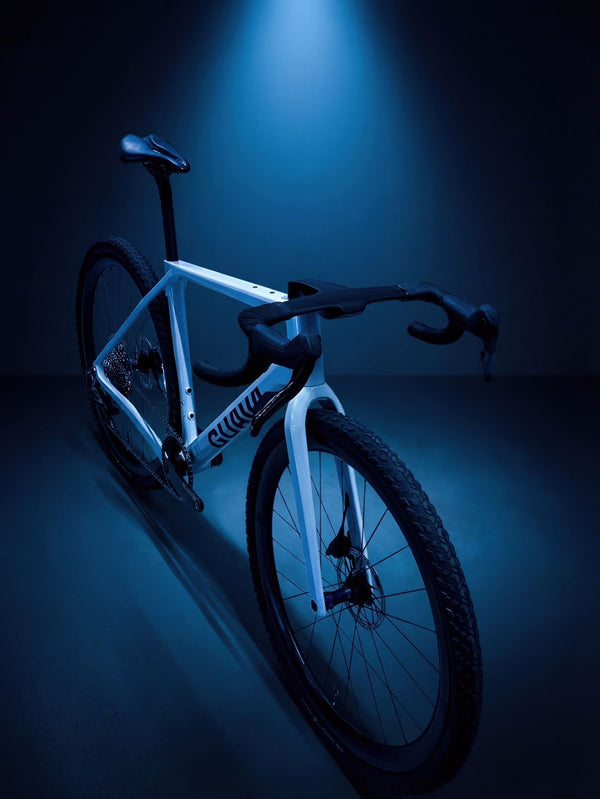

Guava Limited Edition
BORN WILD. RACE READY. A race-bred gravel machine from Barcelona. Built to compete on the most demanding terrain — and win. Now available for pre-order.

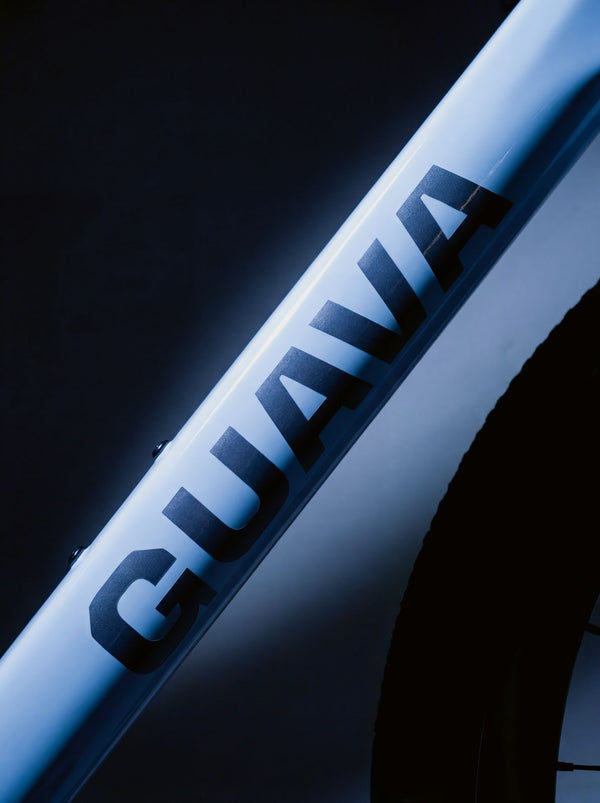

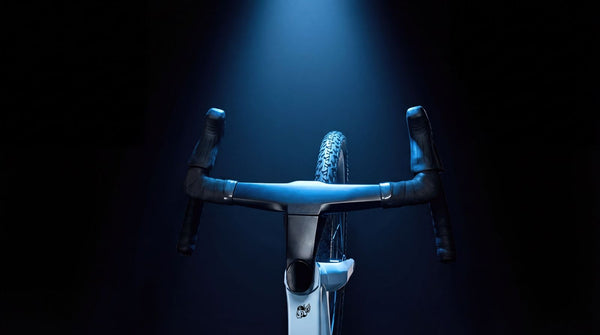

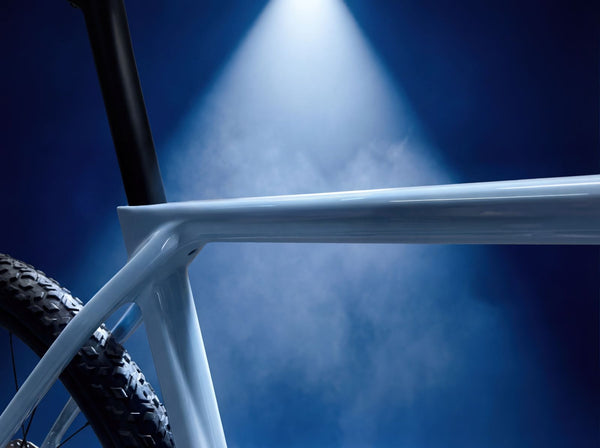

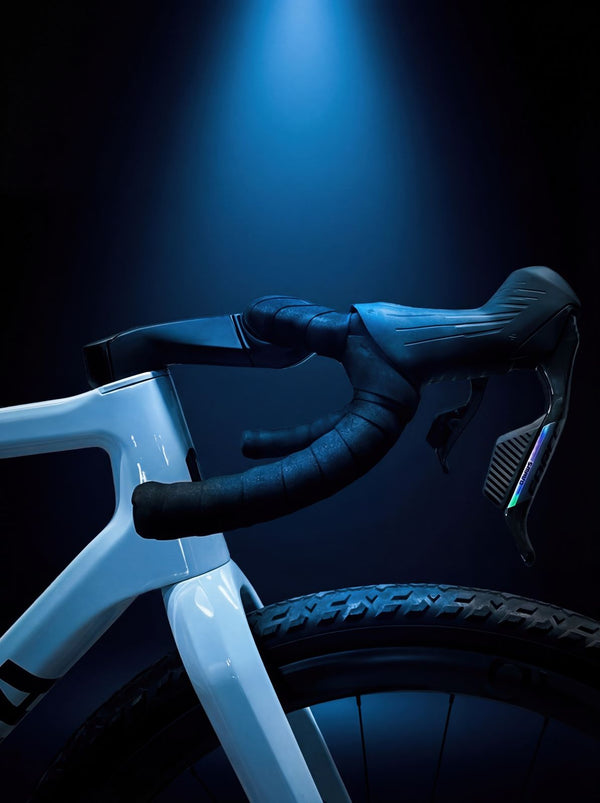

PURE GRAVEL DNA. 300 grams lighter than our Spot frame. A new, innovative stem and handlebar with more fitting positions. No more bolts everywhere for bike packers. UDH. Heaps of tyre clearance. This Guava is fully focused on making you go as fast as you can.
FUN GUAVA GEO. UPADTED TO GO FASTER. Some would say that our existing geometry was already pretty fast. Having won world cup races, national titles… But what the hell, we decided to make ours faster anyway. It's only a slight evolution of our popular geometry, but with the possibility to get you in a more aggressive position. And with more fitting possibilities than ever, you can dial in your fit to have as much fun, or speed, as you want.
Size Guide
XS, S, M, L, XL — painted & assembled in Barcelona
What are color options?
Guavas are painted and assembled in Barcelona. Four limited edition colours for this pre-launch — only 20 bikes total across all colours.
Geometría ACE
| Talla | Tubo de sillín | Tubo superior (efectivo | Tubo de dirección | Vainas | Centro-Frontal | Distancia entre ejes | Ángulo de dirección | Ángulo de sillín | Stack | Reach | Caída del pedalier | Rake |
| XS | 450 mm | 529 mm | 110 mm | 425 mm | 584 mm | 1002 mm | 70.5 ° | 73 ° | 532 mm | 366 mm | 74 mm | 48 mm |
| S | 470 mm | 546 mm | 130 mm | 425 mm | 603 mm | 1022 mm | 70 ° | 73 ° | 551 mm | 378 mm | 74 mm | 48 mm |
| M | 495 mm | 565 mm | 150 mm | 425 mm | 618 mm | 1036 mm | 70.5 ° | 73 ° | 572 mm | 390 mm | 74 mm | 48 mm |
| L | 520 mm | 583 mm | 170 mm | 425 mm | 631 mm | 1050 mm | 71 ° | 73 ° | 593 mm | 402 mm | 74 mm | 48 mm |
| XL | 540 mm | 601 mm | 190 mm | 425 mm | 650 mm | 1069 mm | 71 ° | 73 ° | 612 mm | 414 mm | 74 mm | 48 mm |
Specs
- <8.5kg
- 54mm tyre clearance
- SRAM Force XPLR
- Carbon Guava Volte Wheels
- Carbon Guava stem & handlebar
- Pirelli Racing Tires
- Selle Italia Saddle
